The drum wood chipper can cut logs, branches, boards, waste veneers, bamboo, cotton stalks, and other non-wood fiber stems into a certain size of sheet material. Our industry wood chipper is the special equipment for preparing various high-quality wood chips, which is widely used in wood chip production and export bases of paper mills, particleboard mills, and fiberboard mills. Shuliy’s drum chipping machines have advanced machine structure, high-quality cutting sheet material, wide adaptability of raw materials, and convenient operation and maintenance.
Wood chippers can be further crushed into wood chips by adding a wood hammer mill crusher at the back end of the machine, and then used for charcoal making and other operations.
Functions of drum wood chipper
Drum wood chipper is specialized for wood chip production. The application of this machine is very extensive. It is mainly used in particleboard factories, medium, and high-density fiberboard plants, straw plants, bio-power plants, wood chip factories, charcoal processing plants, etc.
The drum chipper has an advanced product structure, high-quality of chipping material, wide adaptability of raw materials, and convenient operation and maintenance. The main raw materials for cutting are small wood, processing residues (such as branches, boards, slats, round wood cores, waste veneers, etc.), and non-wood raw materials (such as reeds, bamboo, etc.).

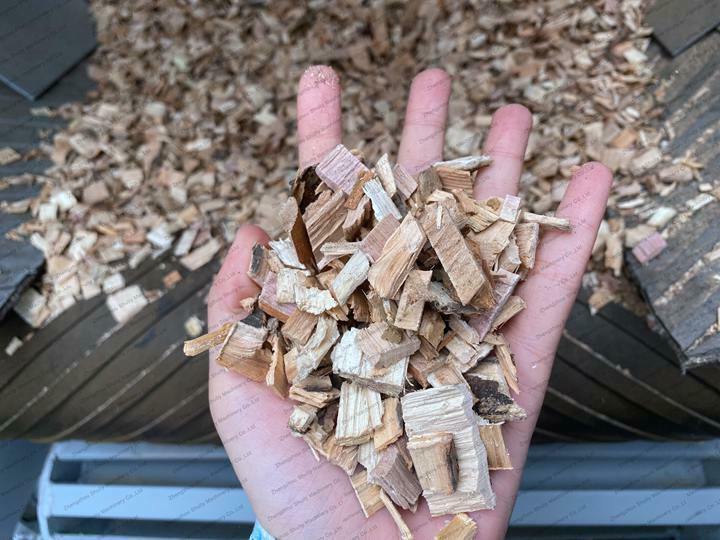

Finished product you can get
The finished product produced by the wood chipper has uniform particle size, fine texture, and smooth surface, which can be widely used in woodworking, paper making, and other fields.
Main structure of wood chipping machine
The drum wood chipper is composed of the main body, a knife, an upper and lower feeding bowl, a conveyor belt, a feeding port, a discharge port, a motor, a hydraulic system, and so on. The main body is welded with a high-strength steel plate. Since the main body is the basis for the whole machine, we use the highest quality steel to ensure that the machine can be used for a long time.
Advantages of wood chips making machine
- Adaptability: The drum chipper can adapt to the installation and use of equipment under different geographical and terrain conditions, and is not affected by seasons, climate, and other external conditions.
- Time-saving: Because the wood chips-making machine does not need a foundation, it can save 10-15 days of valuable time for users. After the equipment is sent to the local area, it can be installed and put into use immediately. It can be completed in 1-2 days, saving 2/3 of the time than usual.
- Saving money: Because the foundation is not required, the drum tree chipper users can save the manpower, material resources, and financial resources of the production. It can save about 500-2000$ according to different models.
- Flexible and convenient: Since it does not have to be installed in a fixed site, the installation and debugging of the drum wood chipper is very simple, which greatly improves the installation speed and flexibility. Thanks to the second discharge device, the user can change the direction of discharge according to the need.
- Large production capacity: It can process 30-300 tons of raw materials every day. Users can process materials according to different requirements. The machine is easy to operate.

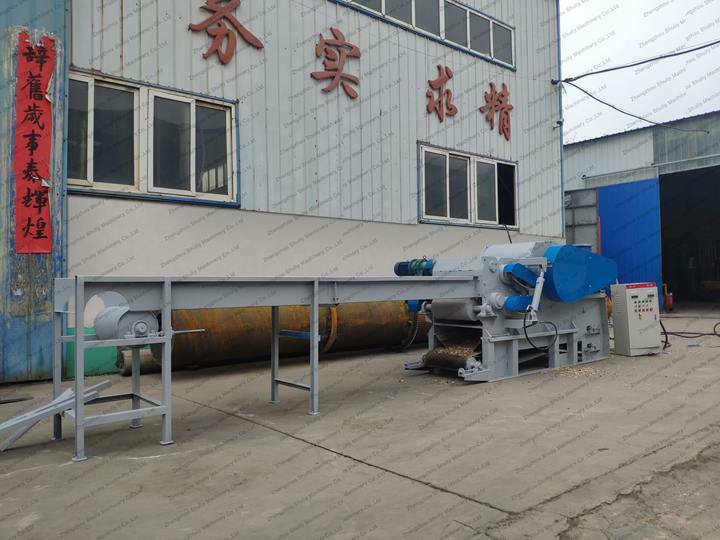

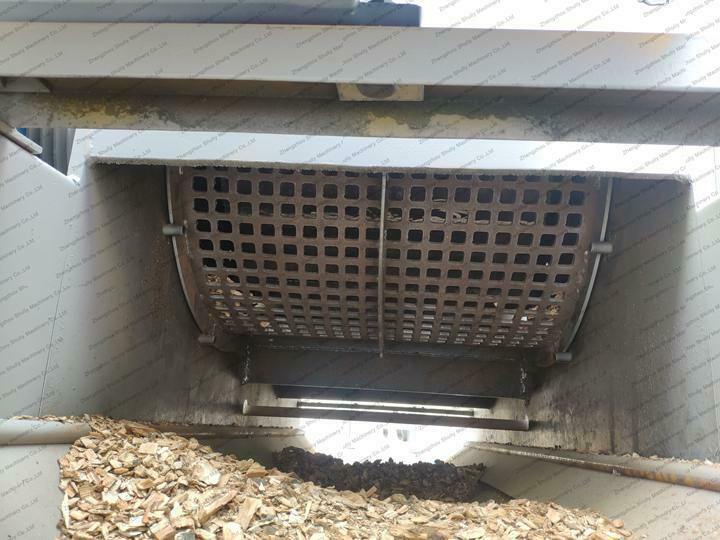

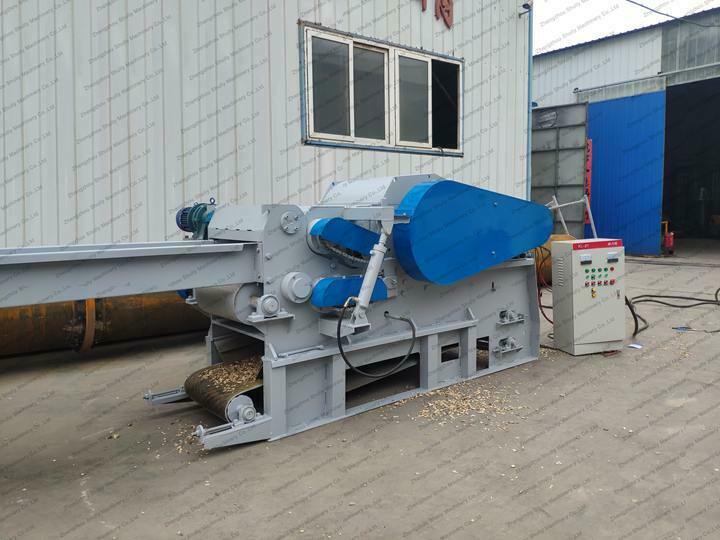

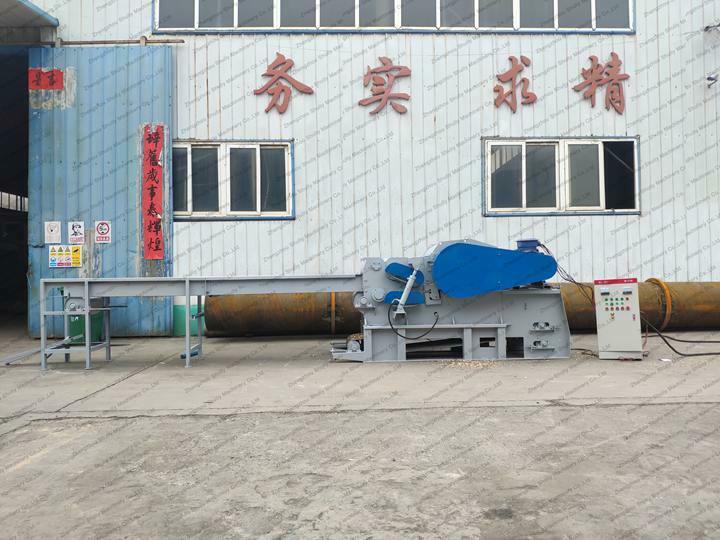

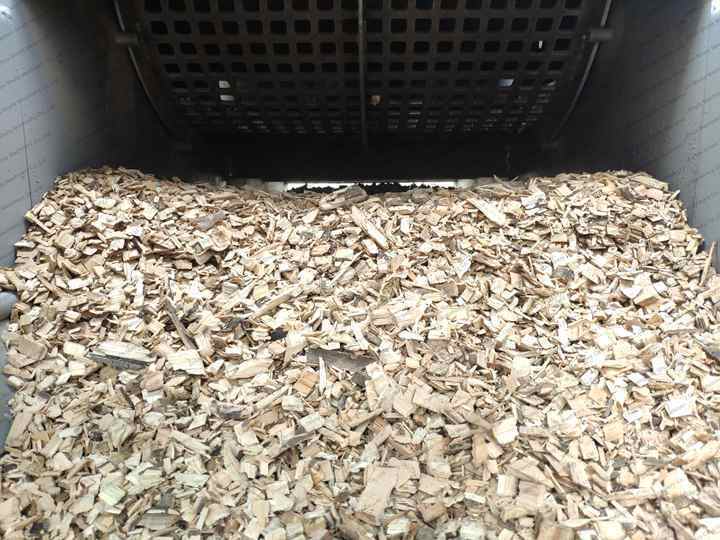

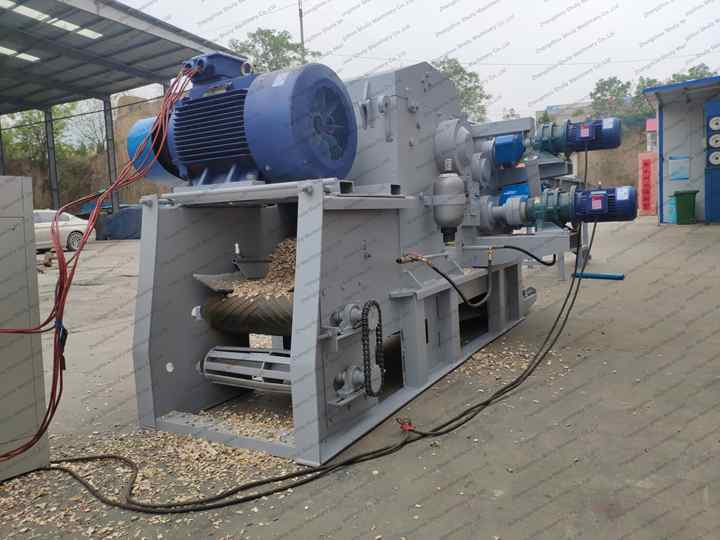

Display of drum wood chipper
Drum wood chipper parameters
| Model | SL215 | SL216 | SL218 | SL2113 |
| Raw material size（mm） | 160*400 | 230*500 | 300*680 | 450*700 |
| Knife number （piece) | 2 | 2 | 2 | 2 |
| Knife rotating speed（rpm） | 592 | 590 | 650 | 500 |
| Raw material diameter（mm） | 160 | 230 | 300 | 450 |
| Wood chip size（mm） | 30 | 30 | 30 | 38 |
| Capacity（t） | 3-4 | 7-8 | 12-15 | 15-30 |
| Main motor power（kw） | 45 | 55 | 110 | 200-250 |
| Feed roller motor power（kw） | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
| Oil pump motor power（kw） | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
| Machine weight（kg） | 3590 | 5030 | 7000 | 11840 |
| Machine size（mm） | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
| Conveyor motor power（kw） | 3 | 3 | 3 | 3 |
Thank you for reading about wood chipper. If you are interested in our machines or have any questions, please feel free to contact us. You can tell us specific requirements before ordering a wood chipper shredder. To protect the interests of our customers, we will select the most suitable machine for you. All customers interested in our machines are also welcome to visit our factory. We look forward to establishing a cooperative relationship with you.
