charcoal crusher

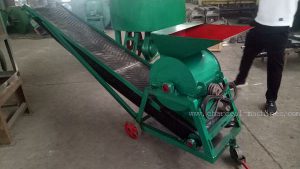

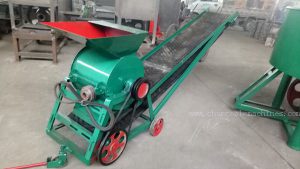

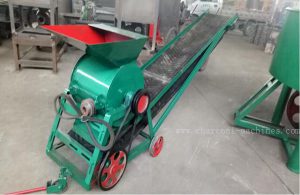

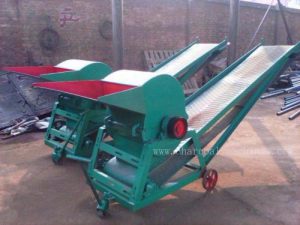

Description of charcoal crusher

The mobile charcoal crusher is a small mobile crushing station. It is a flowable stone crushing operation. which is widely used in charcoal briquette production line, railway, highway, construction, water conservancy, metallurgy, and other industries.

Working principle

Charcoal crusher has two levels of crushing. The two sets of rotors connected in series make the material crushed by the upper rotor immediately,crushed again by the hammerhead of the lower-stage rotor which rotates rapidly, and the inner cavity materials collide with each other at a rapid speed and pulverize each other to achieve the effect of powder material. Finally, discharge charcoal powder directly.


  1. Two-stage crushing.
  2. High alloy wear hammer.
  3. Hydraulic electric starter case, safe and easy to repair.

Main parameters

Model Feed particle size(mm) Product size(mm) Capacity(t/h) Power(kw) Width(mm)
SLFS-300 ≤50 ≤1-3 3-4 5.5 300
SLFS-400 ≤50 ≤1-3 5-8 7.5 400
SLFS-500 ≤50 ≤1-3 8-10 11 500
