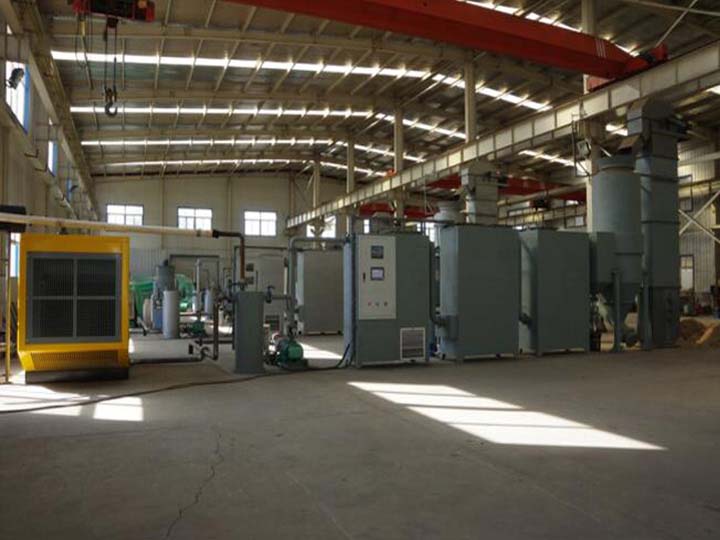

Biomass gasifier |Biomass syngas power plant

Biomass gasification is the use of low-calorie biomass energy sources, which undergo a redox reaction under certain reaction conditions, and then produce flammable gases such as hydrogen and carbon monoxide. The gas produced by this reaction can be used either directly to provide thermal energy or to produce electricity.

What is biomass energy?

The source of biomass energy is solar energy. Biomass energy is the energy accumulated by microorganisms, plants, and animals through photosynthesis. The source of biomass energy is very wide. Crop straw, tree processing waste, animal manure, urban domestic waste, industrial waste, such as rubber, plastic waste, etc. are common biomass energy.

biomass energy

biomass energy

What are the characteristics of biomass energy?

  1. Environmental protection. First of all, raw materials are all kinds of wastes, which solves the problem of disposal of some wastes. Secondly, after the oxidation-reduction reaction, the produced gas is carbon monoxide(CO), hydrogen(H2), methane(CH4), polyacetylene(CmHn) and other combustible gases, which does not cause any pollution to the environment.
  2. Biomass energy can be produced again through photosynthesis of plants and animals. It belongs to renewable energy as well as solar energy, water energy, wind energy, etc.
  3. The richness of the total amount. Biomass energy, as the fourth largest energy source on earth, has a wide range of sources. According to statistics, the biomass energy produced by the earth every year is about 10 times the energy consumed by human beings, while the utilization rate of such energy by human beings is less than 3%.
  4. Low production cost. The cost of recycling biomass waste is low, so the cost of using biomass energy to generate electricity is very low, close to 02-0.3RMB / Kw.H, which is equivalent to 60% -70% of the cost of using coal to generate electricity.

Due to the above characteristics of biomass energy, more and more countries have begun to pay attention to the use of such energy. The use of biomass energy to provide power or produce electricity is the future development trend.

Introduction to Biomass Gasification

After incomplete combustion and the oxidation-reduction reaction of biomass energy in the gasifier, a series of combustible gases will be produced. This process is called biomass energy gasification.

Working process

Drying — pyrolysis — oxidation — reduction — purification — combustion and utilization of combustible gases

Relative devices

Gasifier-cooling dust collector-tar purifier-tar separator-internal combustion generator / boiler, etc.

Gasification process

The gasifier is mainly divided into five layers: air layer, drying layer, pyrolysis layer, oxidation layer, and reduction layer.

Reactions in the gasifier

Reactions in the gasifier

After the biomass material enters the gasification furnace, it is dried and heated. As the temperature continues to increase, volatile substances precipitate at high temperatures and undergo a pyrolysis reaction. Pyrolysis gas and carbide react to produce water vapor and carbon dioxide. At the same time, the heat produced can be used for the endothermic reduction of the reduction reaction and the pyrolysis of tar to achieve the best heat utilization.

the function of the gasifier

the function of the gasifier

Dust is discharged from the spiral conveyer at the bottom of the gasifier, and gas is discharged from the exhaust port. At this time, the obtained gas cannot be directly put into production, and it also needs to be purified and filtered to remove dust and tar inside the gas before it can be put into use.

Purification process:

  1. Impurity removing device. The whole set of equipment is equipped with 6 sets of Sacron to ensure the good effect of removing impurities.
  2. Cooling device. The syngas passes through the cold air, condensing the water and tar inside it. In this process, the synthesis gas does not directly contact the air inside the machine but passes through the air duct inside the machine.
  3. Tar filter. The tar filter consists of four tar removers immersed in water.
  4. Tar separator. This machine includes a cooling device, which can make water and tar condense, and then use dry filtration method to discharge tar through centrifugal filtration.
  5. Filter. The inside of the filter contains activated carbon and stainless steel filter screen for the final filtration of tar and water vapor.
  6. Roots blower. Roots blower is the power source of the whole gasification process and purification system. In the whole production process, the role of Roots blower is not only to make the machine run under negative pressure, but also to make the gasification reaction fully, without producing too much carbon dioxide.
the whole structure of the biomass syngas gasifier

the whole structure of the biomass syngas gasifier

Biomass gasification requirements for raw materials

  1. Size of raw materials: The size of biomass particles or blocks must not exceed 30mm.
  2. The humidity of raw materials: moisture content should be ≤20%

Video: 200kw biomass gasification power plant

Parameters of biomass gasification line

KX-300SA Parameter of the gasifier

Syngas output 300m3/h Syngas caloric value 1000-1200 kcal/m3
Fuel Consumption 150kg/h Power supply 380V 50Hz/60H
Gasification efficiency >72% Power of gasifier 18kw
Matching Engine 100kw Raw material length size is < 30mm,
 requirements moisture content< 20%
Certificate CE Place of origin Zhengzhou city, China
Installation size (Length × width × height)14m×3.5m×5.16m
Biomass gasification map

Biomass gasification map

Gasifier supply scope

No. Name Parts Number Remarks
1 Furnace body part Furnace body 1 Gasifier reactor
charging machine 1 Raw material transportation
Charging interface 1 Matching
Screw ash discharger 1 Mechanical ash removal
Ash hopper 1 Carbon ash temporary storage
Electric butterfly valve 4 Closure Valve of Ash Remover
Video Observer 1 Observation of combustion in the gasifier chamber
Hearth protective plate 1 safety protection
Level meter 2 Controlling the number of raw materials in the furnace chamber and the quantity of carbon ash in ash hopper
Temperature sensor 3 Controlling feeding and ash removal
Iron cone 1 Auxiliary materials
2 Duster Cyclone dust collector 6 Syngas dedusting
Air cooling fan 1 cooling
Temperature sensor 1 Detection temperature
3 Cooler Cooler 1 Gas cooling
Fan 1 Cooling down
4 Tar purifier It contains four sets of tar removers and a set of water-cooled cooling gases. 1 Tar removal
Cooler 1 Circulating water cooling
Water circulating pump 1 Cooling water circulation
Temperature sensor 1 Detection temperature
5 Tar filter Gas Cooling Device 1 Cooling Syngas
Tar centrifuge 1 Separation tar
Dry filter 1 Filtered tar
Temperature sensor 1 Detection temperature
6 Roots Blower Roots Blower 1 Providing power for biomass gasification
Pressure transmitter 1 Controlling Roots Blower
Rubber soft connection 2 Shock absorption and noise reduction
7 Polytetrafluoroethylene butterfly valve 3 Controlling the Conveyance of Synthetic Gas
8

Gas distributor

Contains three sets of dry filters 1 Filtration of syngas
Torch 1 Quality Detection of Synthetic Gas
9 Control Cabinet PLC 1 Control System of Equipment Operation
10 Connecting pipe Welding Gasifier Connection
11 Bolts and asbestos pads Gasifier Connectors and Seals
12 Hold-all 1 Equipment Installation Tool
Control panel of biomass gasification power plant

Control panel of biomass gasification power plant

Genset supply scope

Model Number (Engine Type) 118D12TL-2
Prime Power 100KW
Rated Speed (r/min) 1500/1800
Rated Frequency 50Hz /60Hz
Rated Voltage 400V/230V
Phase AC 3-Phase, 4 wire
Voltage Stability ≤±1%
Voltage transient ≤-10%–+20%
Voltage Stable time ≤3s
Heat consumption ≤11mj/Kw.h
Lubricant consumption ≤1.0g/Kw.h
Engine Capacity 151.8 L
Cylinder Number 6-V
Cylinder Bore 128mm
Stroke 152mm
Starting System DC 24V electric motor
Cooling method water cooler
Lubricant method Passive and flying lubricant
Isolation class H
Protection IP23
Alternator Chinese Stamford
Power Factor 0.8 lagging
Exciting method brushless
Colour your choice
Certificates ISO 9001:2008, CE
Warranty 1 year or 1000 running hours which arrives first
Type Open
Control system Automatic alarm system
Size 2850x1100x1750mm
Weight 2350kg

Successful case

Customers from Russia visited our factory and had an in-depth exchange with our technical staff.

Our customers are discussing biomass gasification

Our customers are discussing biomass gasification
