Wood Shaving Machine For Animal Bedding

Designed with rotary blades and adjustable screen, the wood shaving machine can efficiently process logs, branches, board edges, etc. (≤30 cm in diameter) into uniform shavings of 0.5-3 mm. It can easily meet the needs of horse, pig, cow, chicken and other livestock bedding and various downstream processes.

The energy-saving design saves 20% electricity on average in the production process, and the production capacity covers the range of 200-3000 kg/h. Maximum speed of 3 tons of wood per hour, significantly increasing production capacity and processing efficiency.

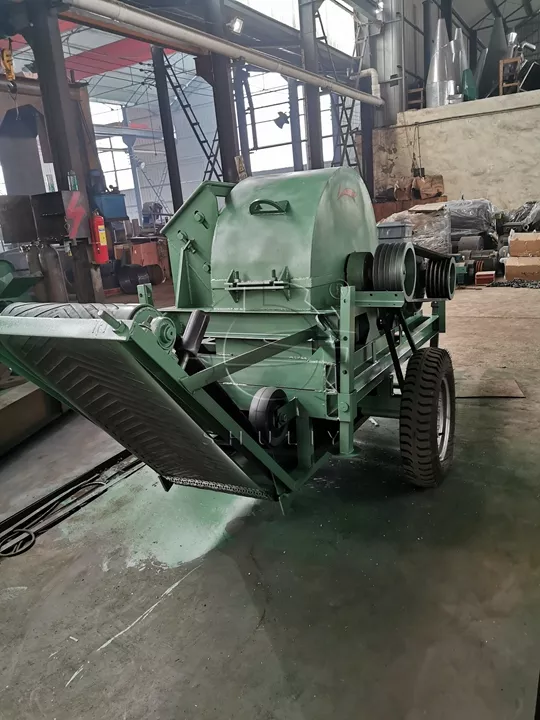

The wood shaving machine is available in fixed or mobile layout, and supports motor or diesel engine drive. It can be flexibly adapted to a variety of application scenarios, such as animal husbandry, packaging and filling, particle board, paper making, and biomass fuel.

With its compact structure, low noise and easy maintenance, it is an ideal tool for pastures, wood mills, paper mills and biomass power plants to improve resource utilization and production efficiency.

Highlight advantages of wood shaving machine

• Adopting high speed rotary blade and uniform feeding system, it is able to prepare fine shavings with uniform thickness in batches.
• By adjusting the blade angle and screen aperture, a wide range of shavings from 0.5-3 mm can be easily realized.
• It supports a wide range of agricultural and forestry wastes such as logs, branches, board edges, bamboo, corn stalks, etc., making it a versatile machine.
• The model covers a wide range of production capacity up to 3 t/h, which can easily cope with the demand of large-scale production.
• The resulting flakes are soft and fluffy, with good moisture absorption and cushioning properties, and are suitable for livestock bedding and packaging filling.
• The downward tilting discharge opening design allows the shavings to be discharged without any obstruction and reduces secondary clogging and cleaning time.
• Compact structure, less maintenance points, daily maintenance only need to clean the knife and screen, and replace the blade quickly.

Wood shaver machine uses and applications

• Shavings are light and fluffy, commonly used as bedding for horses, pigs, cows, sheep, chickens and other livestock and pets to keep them dry and comfortable.
• Fine particle can be used as environmentally friendly filler material for transporting delicate instruments, ceramics and other fragile items, cushioning and shockproof.
• It provides a uniform wood base for particleboard and MDF, and is widely used in furniture and building decoration.
• As an auxiliary material in the production of plywood and OSB, it improves the strength and stability of the board.
• Flakes can be further processed into wood pulp for fiber filling and reinforcement in paper production.
• As a renewable energy source, it is used in boilers, cogeneration and biomass power generation with high combustion efficiency and carbon neutrality.
• Shavings in compost can improve aeration and water retention, accelerate decomposition of organic matter and generate high quality horticultural soil.

Working steps of the wood shaving mill

• Feeding into the machine: the wood to be processed, such as logs and boards, is fed into the planer from the feeding port.
• Knife disk rotation: after the machine starts, the knife disk with four blades inside rotates at high speed to form strong cutting force.
• Planing and molding: after the wood is planed by the rotating blades, the surface is thinned layer by layer, forming uniform shavings or fine particles.
• Shavings adjustment: by adjusting the tilt angle of the knife plate and the depth of the blade, the thickness and particle size of the shavings can be flexibly controlled to meet different needs.
• Discharge: the wood shavings after planing are discharged from the discharge port, which can be used for livestock bedding, packaging filling, plate manufacturing and other applications.

Technical data of wood shavings making machine

The wood shaving machines are sold to South Africa and its neighboring regions, mainly for horse and chicken farms. In addition, the equipment is sold to Uganda, Nigeria, and Middle Eastern countries such as Saudi Arabia, the USA, and Canada. Here are a few best-selling models.

MODEL	CAPACITY	INPUT SIZE	POWER
SL-420	300KG/H	6cm	7,5 кВт
СЛ-600	500KG/H	12cm	15kw
СЛ-800	1000KG/H	16cm	30kw
СЛ-1000	1500KG/H	20cm	55kw
СЛ-1200	2000KG/H	24cm	55kw
SL-1500	2500KG/H	32cm	75 кВт

We provide high-quality wood shaving machines and produce wood crushers(Related Post: Small Wood Crusher Machine | Sawdust Making Equipment>>), wood chippers, and many other wood processing equipment. Feel free to contact us for more product information and professional consultation to help you improve productivity and realize business growth.
